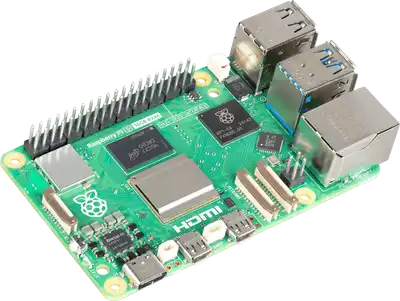

Computadora embebida programable para uso domestico o proyectos de electrónica.
- Procesador CPU integrado Broadcom BCM2712, ARM64 Cortex-A76 Quad Core de 2.4 GHz
- Procesador GPU integrado VideoCore VII
- RAM DDR4 integrada
- WiFi DualBand 802.11 b/g/n/ac y Bluetooth 5.0 integrados
- Requiere microSD con sistema operativo.
Requiere carga de 5V por USB C. Fuente de carga se vende por separado.
Adaptador o cables de microHDMI a HDMI se venden por separado.
Especificaciones:
- Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
- VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.3
- Dual 4Kp60 HDMI® display output with HDR support
- 4Kp60 HEVC decoder
- LPDDR4X-4267 SDRAM (2GB, 4GB, 8GB, and 16GB)
- Dual-band 802.11ac Wi-Fi®
- Bluetooth 5.0 / Bluetooth Low Energy (BLE)
- microSD card slot, with support for high-speed SDR104 mode
- 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
- 2 × USB 2.0 ports
- Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
- 2 × 4-lane MIPI camera/display transceivers
- PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
- 5V/5A DC power via USB-C, with Power Delivery support
- Raspberry Pi standard 40-pin header
- Real-time clock (RTC), powered from external battery
- Power button
Documents
Your questions answered
Will older versions of Raspberry Pi OS work with Raspberry Pi 5?
The current version of Raspberry Pi OS, Trixie, and the legacy version, Bookworm, work with Raspberry Pi 5. Versions older than Bookworm do not.
Will my Raspberry Pi 4 power supply work with Raspberry Pi 5?
Raspberry Pi 5 is a higher-performance computer than Raspberry Pi 4, and you may have problems using an under-powered supply. We recommend a high-quality 5V 5A USB-C power supply, such as the new Raspberry Pi 27W USB-C Power Supply.
Will my Raspberry Pi 5 fit my Raspberry Pi 4 case?
Raspberry Pi 5 won’t fit the Raspberry Pi 4 Case. We recommend the Raspberry Pi Case for Raspberry Pi 5, designed to help you get the most out of our newest computer.
Does Raspberry Pi 5 need active cooling?
Raspberry Pi 5 is faster and more powerful than prior-generation Raspberry Pis, and like most general-purpose computers, it will perform best with active cooling. The Raspberry Pi Case for Raspberry Pi 5, with its integrated fan, is one way to provide this.
